SMARTci® (on closed framing)

Expert-engineered GreenGirt® CMH™ continuous insulation systems and SMARTci™ building enclosure systems combine the structural integrity of steel with the thermal insulative properties of fiber-reinforced polymers. Plus, the systems are easy to install — perfect for your next project.

Continuous Insulation Clip System

GreenGirt® CMH™ Clip System delivers a comprehensive solution for exterior wall cladding, offeirng secure attachment and zero thermal bridging through its innovative continuous insulation clip technology — designed for optimal performance and energy efficiency, and installed vertically with a hat channel(s) and

How It Works

The GreenGirt CMH Clip System adheres to the eight continuous insulation best practices. Additional features that make the GreenGirt CMH Clip System stand out as the best choice for your building include:

Air- and Water-Tight Building Enclosure System

Installed over traditional closed framing with sheathing and a water-resistive barrier, the SMARTci system is engineered to ensure that air and water stays where it belongs (sheathing and WRB provided by others).

Learn more >

Includes Custom-Profiled Rigid Insulation

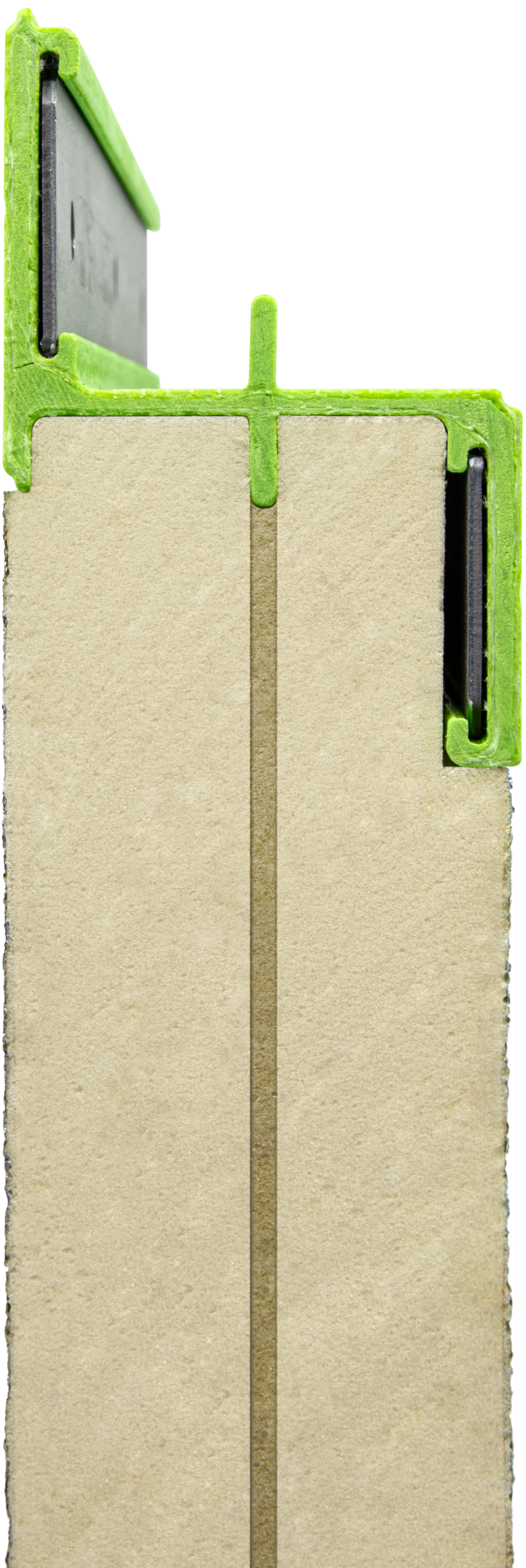

SMARTci’s rigid insulation panels are custom-profiled to fit exactly to GreenGirt CMH Z-girts and the required depth, pre-routed in-house for a seamless, stack-and-go installation process.

Learn more >

Pressure Seals to Connect Rigid Insulation Panels

The pressure seal accessory seamlessly connects rigid insulation panels for a 360-degree air- and water-seal and a streamlined installation process, reducing both time and material costs.

Learn more >

ThermaLock Technology Holds Insulation in Place

Through ThermaLock technology on the GreenGirt CMH Z-girts, SMARTci systems can hold insulation in place, eliminating the need for extra fastening materials.

Learn More >

Secured with FEA Testing

Every SMARTci system undergoes finite element analysis (FEA) testing to ensure that each system is designed to meet optimal strength requirements for every project.

Learn More >

Configuration Options

Compatible Insulation	Custom-profiled rigid insulation
System Components	GreenGirt CMH Z-girts, custom-profiled Dual Foil-Faced Class A polyiso insulation panels, pressure seals
Compatible Substrates	CMU, closed framing
SMARTciᵀᴹ (on closed framing) Length	8'
SMARTciᵀᴹ (on closed framing) Widths	1.5" 2", 2.5", 3", 3.5", 4", 4.5", 5", 5.5", 6", 8"
Compatible Insulation Thickness	1.5", 2", 2.5", 3", 3.5", 4", 4.5", 5", 5.5", 6", 8"
SMARTciᵀᴹ (on closed framing) Orientation	Vertical or horizontal
Compatible Cladding	All
Drainage Plane Location	Outboard of SMARTci® system

The GreenGirt CMH Clip System adheres to the eight continuous insulation best practices. Additional features that make the GreenGirt CMH Clip System stand out as the best choice for your building include:

Downloads

Download essential technical documents to streamline your design, specification, and installation process.

Thermal Performance Report

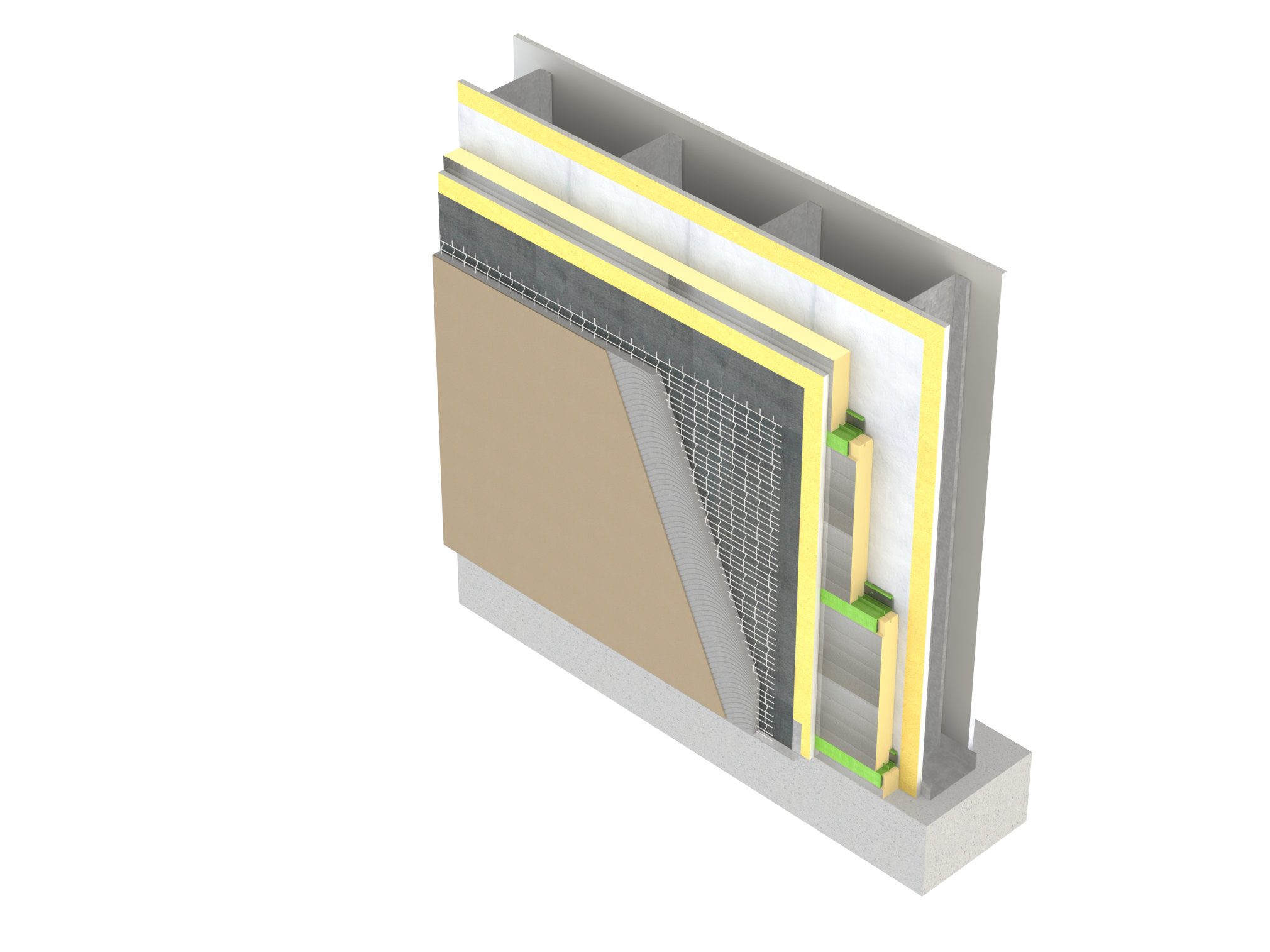

Installation of the SMARTci system on closed framing, designed for maximum thermal efficiency and structural integrity.

A close view of the SMARTci system installed on closed framing, with secure pressure seals connecting the custom-profiled rigid insulation panels together.

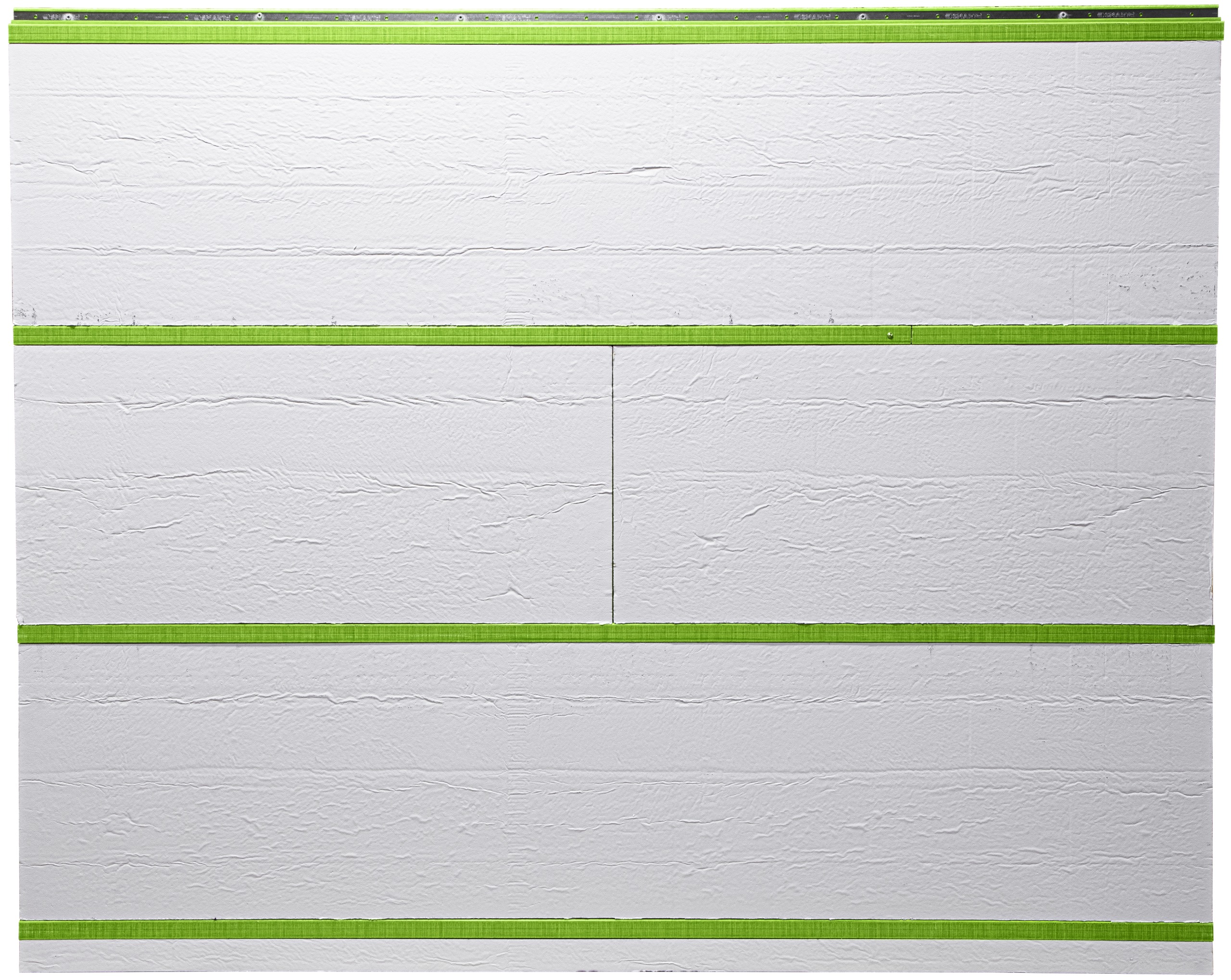

The first layer of the SMARTci building enclosure system installed on closed framing, with custom-routed rigid insulation panels connected with pressure seals.

A close-up view of the SMARTci building enclosure system installed on closed framing with custom-routed XPS insulation.

The peeled back layers of the SMARTci building enclosure system installed on closed framing, demonstrating proper installation and the thermal efficiency of the system as a whole.

How to Install

Expert Installation Made Simple

Discover a step-by-step guide, ensuring a seamless and efficient installation process. Access detailed instructions and tips to enhance installation of your GreenGirt CMH Clip System.

Download installation manual

Frequently Asked Questions (FAQs)

What substrates does SMARTci (on closed framing) work with?

SMARTci (on closed framing) works with closed framing and CMU substrates.

What are SMARTci (on closed framing) air- and water-tightness ratings?

When installed over closed framing with sheathing and a WRB, SMARTci is described as engineered for water tightness to 1.57 PSF and air tightness to 6 PSF (WRB/sheathing provided by other manufacturers).

What comes in the SMARTci (on closed framing) system?

The SMARTci system includes GreenGirt CMH Z-girts, custom-profiled rigid insulation boards (either dual foil-faced Class A polyiso or XPS), and pressure seals to hold each insulation board together.
