SMARTci® (on open framing)

Expert-engineered GreenGirt® CMH™ continuous insulation systems and SMARTci™ building enclosure systems combine the structural integrity of steel with the thermal insulative properties of fiber-reinforced polymers. Plus, the systems are easy to install — perfect for your next project.

Continuous Insulation Clip System

GreenGirt® CMH™ Clip System delivers a comprehensive solution for exterior wall cladding, offeirng secure attachment and zero thermal bridging through its innovative continuous insulation clip technology — designed for optimal performance and energy efficiency, and installed vertically with a hat channel(s) and

How It Works

The GreenGirt CMH Clip System adheres to the eight continuous insulation best practices. Additional features that make the GreenGirt CMH Clip System stand out as the best choice for your building include:

Maximizes Interior Square Footage & Has The Highest R-Value Per Inch of Insulation

Enhance space utilization and thermal efficiency, providing superior insulation in a compact design to increase usable interior area.

Learn more >

Enhanced Air- and Water-Tight Building Enclosure System (to 20 psf)

Optimize building resilience with an enhanced air- and water-tight building enclosure system, designed to withstand up to 20 psf.

Learn more >

Includes Custom-Profiled Rigid Insulation

SMARTci’s rigid insulation panels are custom-profiled to fit exactly to GreenGirt CMH Z-girts and the required depth, pre-routed in-house for a seamless, stack-and-go installation process.

Learn more >

Pressure Seals to Connect Rigid Insulation Panels

The pressure seal accessory seamlessly connects rigid insulation panels for a 360-degree air- and water-seal and a streamlined installation process, reducing both time and material costs.

Learn more >

Secured with FEA Testing

Every SMARTci system undergoes finite element analysis (FEA) testing to ensure that each system is designed to meet optimal strength requirements for every project.

Learn More >

Configuration Options

Compatible Insulation	Dual foil-faced Class A polyiso insulation
System Components	GreenGirt CMH Z-girts, custom-profiled polyiso insulation panels, WRB (by others)
Compatible Substrates	Open or closed framing
GreenGirt CMH Z-Girt Length	8'
GreenGirt CMH Z-Girt Widths	1.5", 2", 2.5", 3", 3.5", 4", 4.5", 5", 5.5", 6", 8"
Compatible Insulation Thickness	1.5", 2", 2.5", 3", 3.5", 4", 4.5", 5", 5.5", 6", 8"
GreenGirt CMH Z-Girt Orientation	Horizontal
Compatible Cladding	All
Drainage Plane Location	Outboard of SMARTci system

The GreenGirt CMH Clip System adheres to the eight continuous insulation best practices. Additional features that make the GreenGirt CMH Clip System stand out as the best choice for your building include:

Downloads

Download essential technical documents to streamline your design, specification, and installation process.

Installation Guide (with peel & stick WRB)

Details

Installation Guide (with tape and caulk)

EPD

Cut away view of the layers of a SMARTci building enclosure system installed on an open framing metal stud wall with GreenGirt CMH Z-girts, routed polyiso insulation, weather-restive barrier, and brick cladding.

The SMARTci building enclosure system with a weather-resistive barrier installed on an open framing metal stud wall, demonstrating the layers of thermal efficiency and structural integrity integrated into walls with SMARTci.

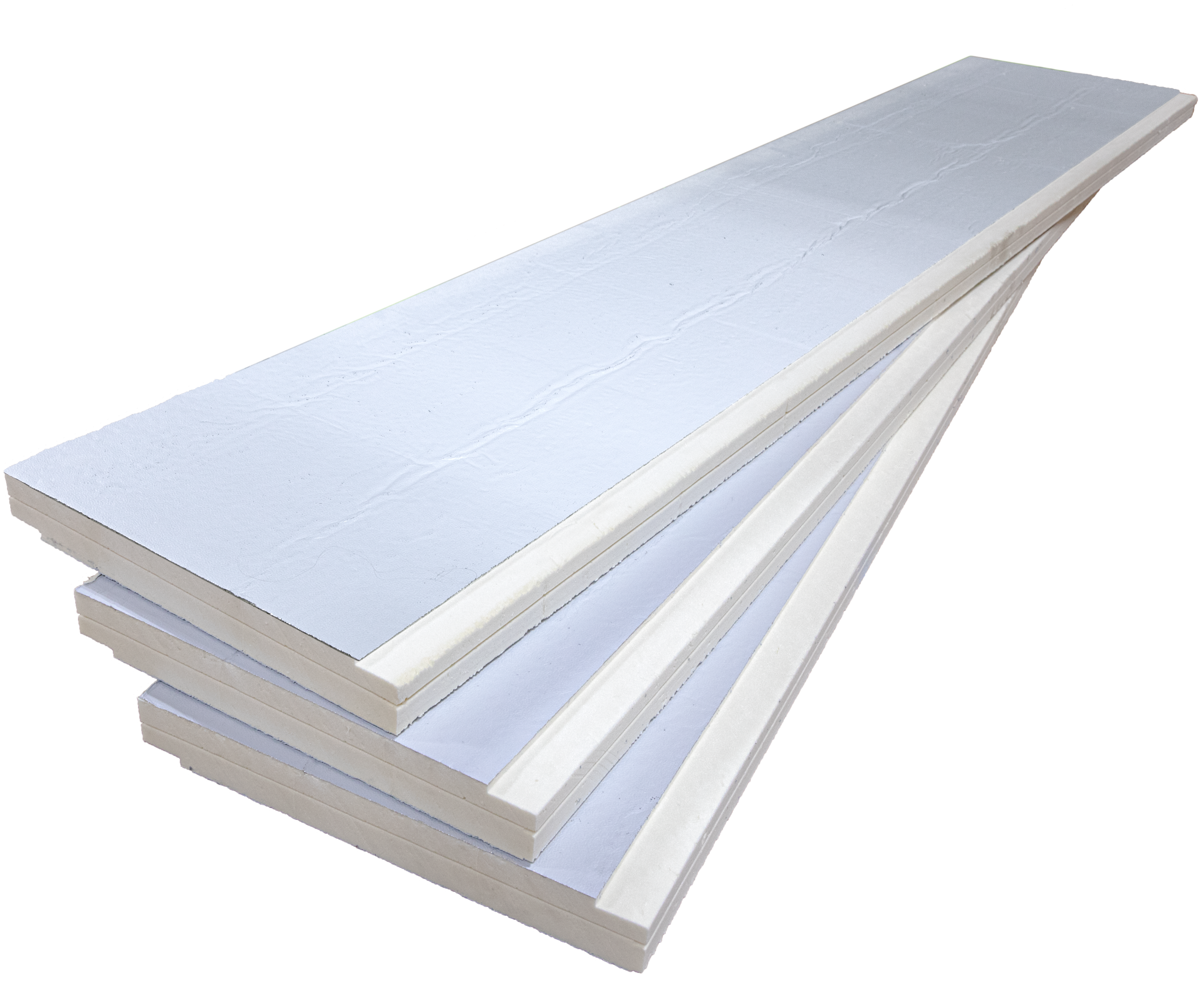

Custom-routed rigid polyiso insulation boards, ready for installation with GreenGirt CMH Z-girts and pressure seals for SMARTci building enclosure systems.

How to Install

Expert Installation Made Simple

Discover a step-by-step guide, ensuring a seamless and efficient installation process. Access detailed instructions and tips to enhance installation of your GreenGirt CMH Clip System.

Download installation manual

Frequently Asked Questions (FAQs)

What is SMARTci on open framing?

SMARTci on open framing is an air- and water-tight building enclosure system designed to eliminate thermal bypass, installed over open framing to improve air/water tightness while reducing labor and material steps. It’s comprised of Class I GreenGirt CMH continuous insulation Z-girts, integrated custom-profiled insulation panels, ThermaLock technology, and required accessories.

What thicknesses are available for SMARTci on open framing?

SMARTci on open framing is available in 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, and 8 inches. Our configuration options table also lists compatible insulation thicknesses across the same range (1.5″ through 8″).

How air- and water-tight is SMARTci on open framing?

SMARTci is an enhanced air- and water-tight building enclosure system designed to withstand up to 20 psf. The system also uses pressure seals to connect rigid insulation panels and create a 360-degree air- and water-seal, plus it’s described as providing a smooth drainage plane outboard of the system.
